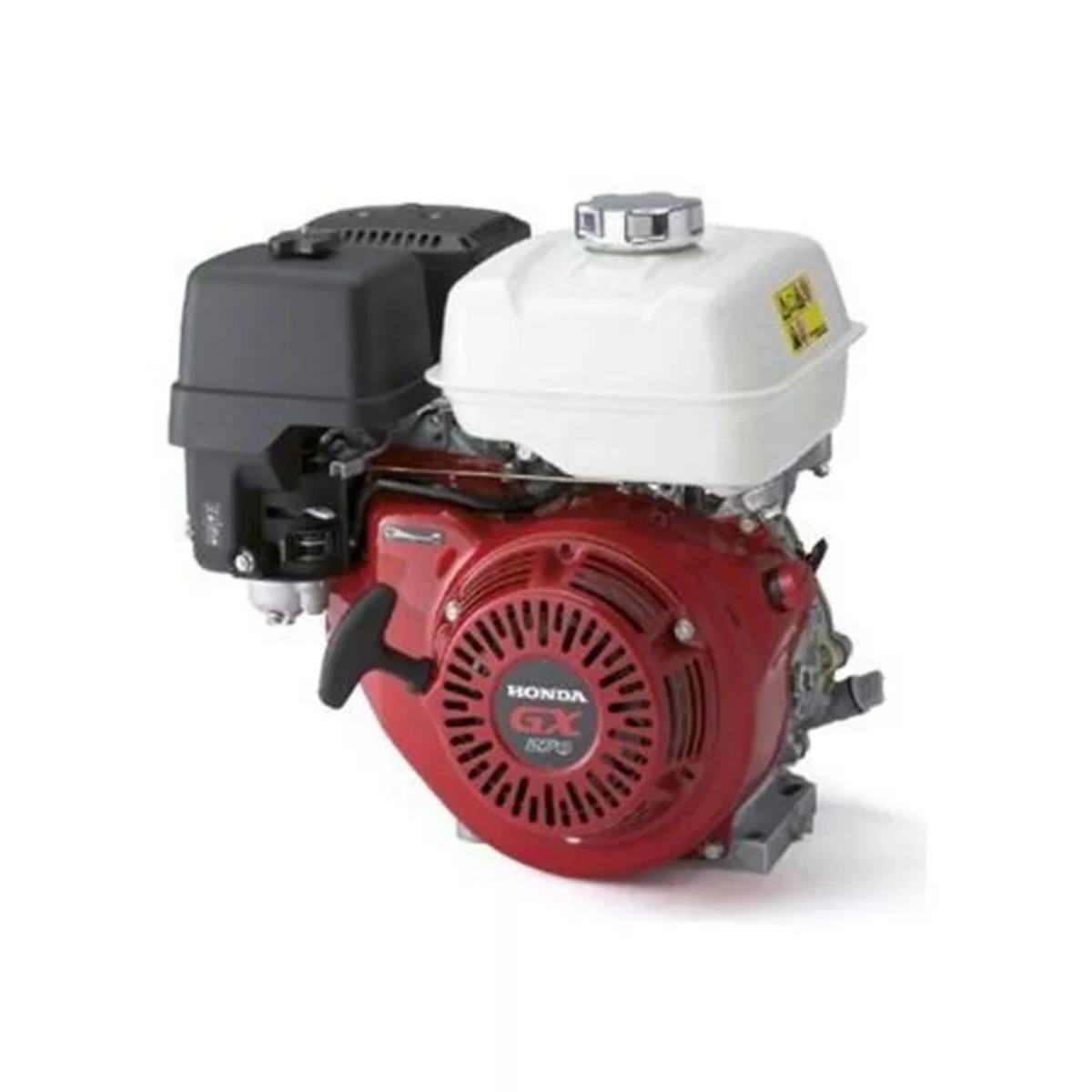

Honda GX160 19mm Keyed Shaft Horizontal Engine

R6 785,46

Honda GX series engines are legendary for superior reliability and performance. And there is no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance. Common applications for this engine is Pressure washers, Commercial lawn and garden equipment, Tillers / cultivators, Generators, Construction / industrial equipment, Agricultural equipment, Water pumps.

Features:

FUEL EFFICIENT, HIGH OUTPUT OPERATION

The GX160’s Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

And the GX160 incorporates a high compression ratio for better fuel efficiency than its competitors.

Sale ends in







Specifications

  • Type4-stroke, overhead valve, single-cylinder
  • Bore & Stroke68 x 45 mm
  • Displacement163 cm3
  • Compression Ratio8.5:1
  • Net Power3.6kW (4.8HP) at 3,600 rpm
  • Continuous Rated Power2.9kW (3.9HP) at 3,600 rpm
  • Maximum Net Torque10.3 Nm at 2,500 rpm
  • Ignition SystemTransistorised magneto ignition
  • Starting SystemRecoil (Electric Starter Optional)
  • Cooling SystemForced-Air
  • CylinderCast Iron Sleeve
  • Fuel Consumption at Rated Power1.4 L/h at 3,600 rpm
  • Recommended FuelUnleaded
  • Lubrication SystemForced splash
  • Recommended Oil10W/30 API SG
  • Fuel Capacity3.1l
  • Oil Capacity0.6l

Additional information

Weight 15 kg
