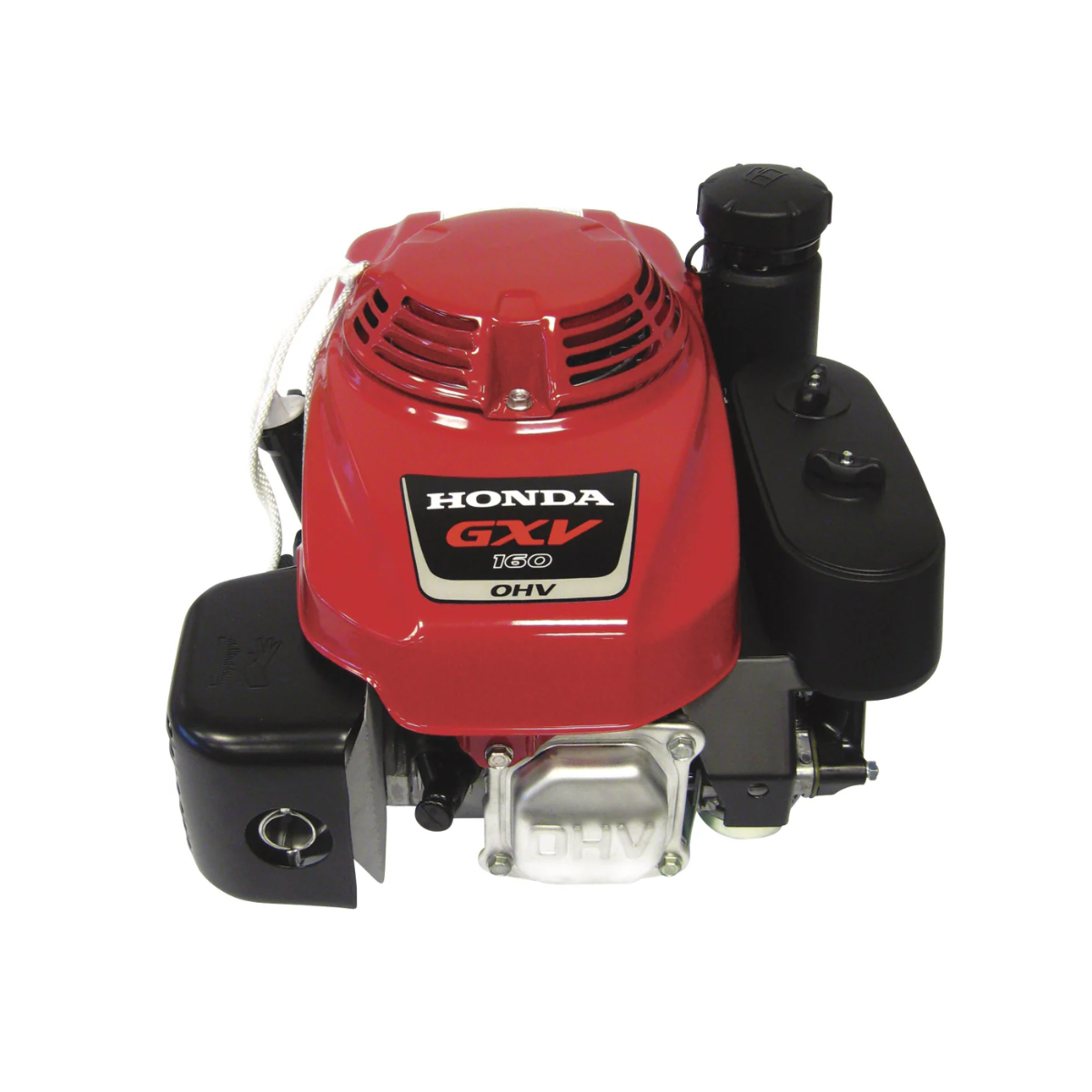

Honda GXV160 Vertical Engine 22mm Shaft 3.2kw

R6 521,88

Professionals rely on the GXV160 Honda engine to deliver reliable, easy starting, fuel efficient performance, day in and day out. Common applications for this petrol engine is Lawn mowers, Commercial lawn and garden equipment, Forestry equipment, Construction / industrial equipment, Agricultural equipment.

Features:

The GXV160 precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer. It also incorporates a high compression ratio for better fuel efficiency, which is handy for your pocket – and the environment. Precision engineered components result in lower vibration, and the GXV160 features a Ball Bearing-supported crankshaft for greater stability.

See detailed specifications below.

Sale ends in







Specifications

  • Type4-stroke, overhead valve, single-cylinder, Vertical shaft
  • Bore & Stroke68 x 45mm
  • Displacement163 cm3
  • Compression Ratio8.0 : 1
  • Net Power3.2 Kw (4.3HP) at 3600 rpm
  • Continuous Rated Power2.0 kW (2.7HP) at 3000 rpm
  • Maximum Net Torque9.6 Nm at 2,500 rpm
  • Ignition SystemTransistorised magneto ignition
  • Starting SystemRecoil
  • Cooling SystemForced-Air
  • PTO Shaft RotationCounter-clockwise (from P.T.O. side)
  • Fuel Consumption at Rated Power1.1 L/h at 3,000 rpm
  • Recommended FuelUnleaded
  • Lubrication SystemForced splash
  • Recommended Oil10W/30 API SG
  • Fuel Capacity1.8 L
  • Oil Capacity0.65 L

Additional information

Weight 15 kg
